The rarest Chevrolet engine ever produced

Throughout its 110-year-plus history, Chevrolet has produced an impressive array of exceptional engines, ranging from contemporary performance titans like the LS9 and LS7 V8s to legendary powerplants such as the formidable 454 "big block" V8 that propelled vehicles like the legendary 1970 Chevy Chevelle SS.

However, similar to other manufacturers, Chevrolet's catalog includes numerous engines that never achieved widespread production and have since slipped into obscurity over time. Among all the limited-production powerplants the company has created throughout its storied history, the extremely scarce 427-cubic-inch V8 stands out as potentially the rarest of the entire collection.

When Winning On Sunday Sold More Cars On Monday

To understand how this engine ended up being so scarce, you first have to understand the crazy drag racing scene of the late 1950s to early 1960s era. When the Automobile Manufacturers Association (AMA) slapped a voluntary ban on factory-backed racing in 1957, Detroit's horsepower wars didn't actually stop—they just went deeply underground.

Rogue engineers at Chevrolet and Pontiac quietly funneled high-performance parts to privateer teams through back-door channels. These efforts paid off handsomely, with both Chevy and Pontiac achieving great success on the track on Sundays and getting rewarded with sales on Monday.

Facing Stiff Competition, Chevrolet Needed An Answer

One of Chevrolet's most successful performance efforts was the legendary 409 cubic-inch V8, an engine so potent it inspired a Beach Boys hit and turned the sleek 1961–1962 Bel Air "Bubble top" into a drag strip terror. But as successful as the Bel Air was, the competition was getting stronger every year, and in 1962, Mopar unleashed downsized, 413 "Max Wedge" monsters that routinely left the Bel Air in the dust. Even worse, Chevy faced fierce internal competition from its sister brand Pontiac, which dropped the legendary 421 Super Duty V8 under the hood of the Catalina, put it on a diet, and even drilled about 130 holes in its steel frames to create the radical 421 "Swiss Cheese" Catalina.

Backed into a corner and losing on Sunday, Chevrolet performance engineers launched a desperate, top-secret counterattack. They took the iconic 409 V8 and stroked it out to a massive 427 cubic inches of raw displacement, topped it with a radical high-rise aluminum intake and dual Carter four-barrel carbs, and created a 500-plus horsepower track terror that only a few dozen buyers got to enjoy.

The 1963 427 Z11 V8 Is The Rarest Engine Chevy Ever Produced

Chevrolet Z11 V8 Details

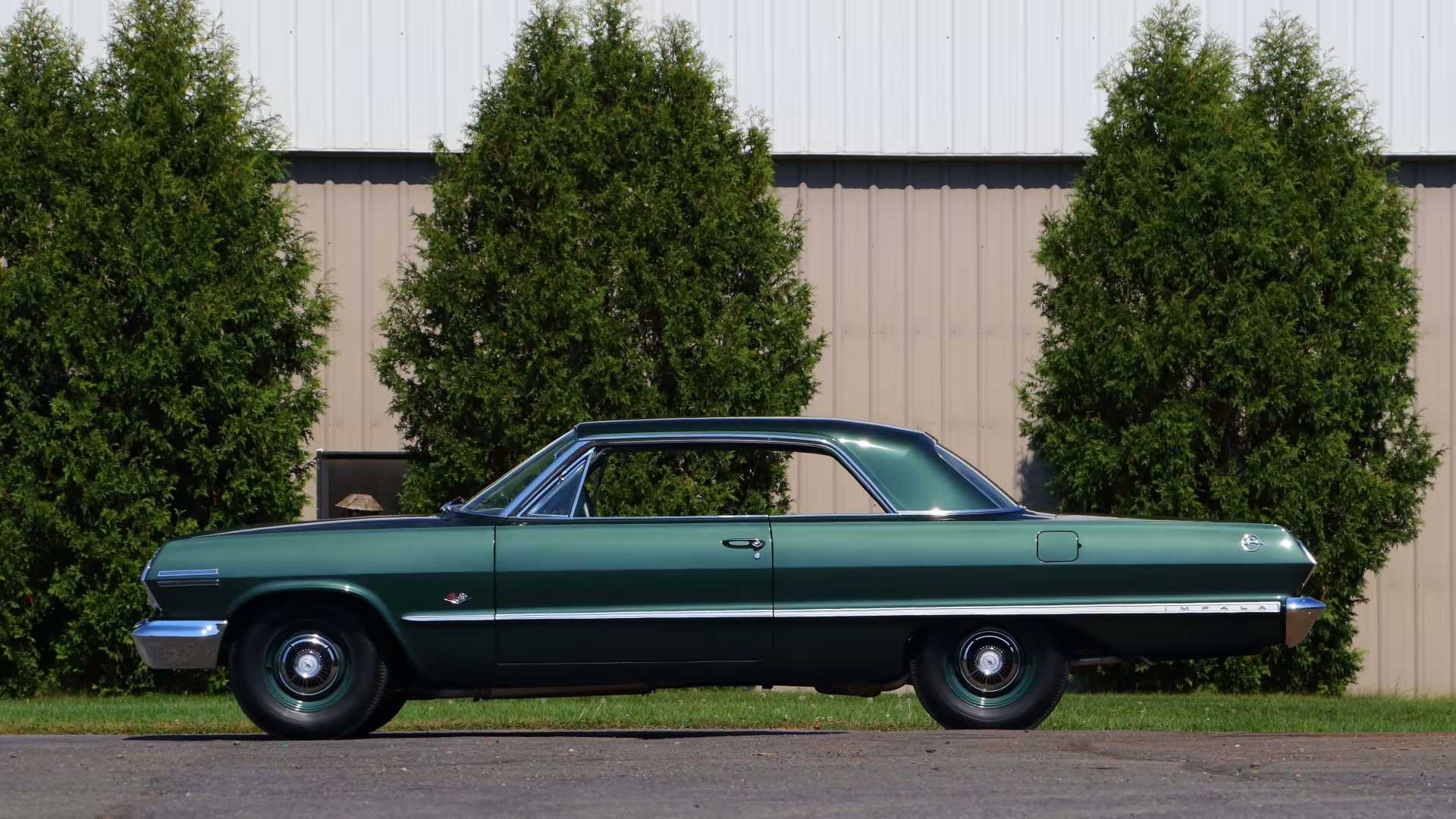

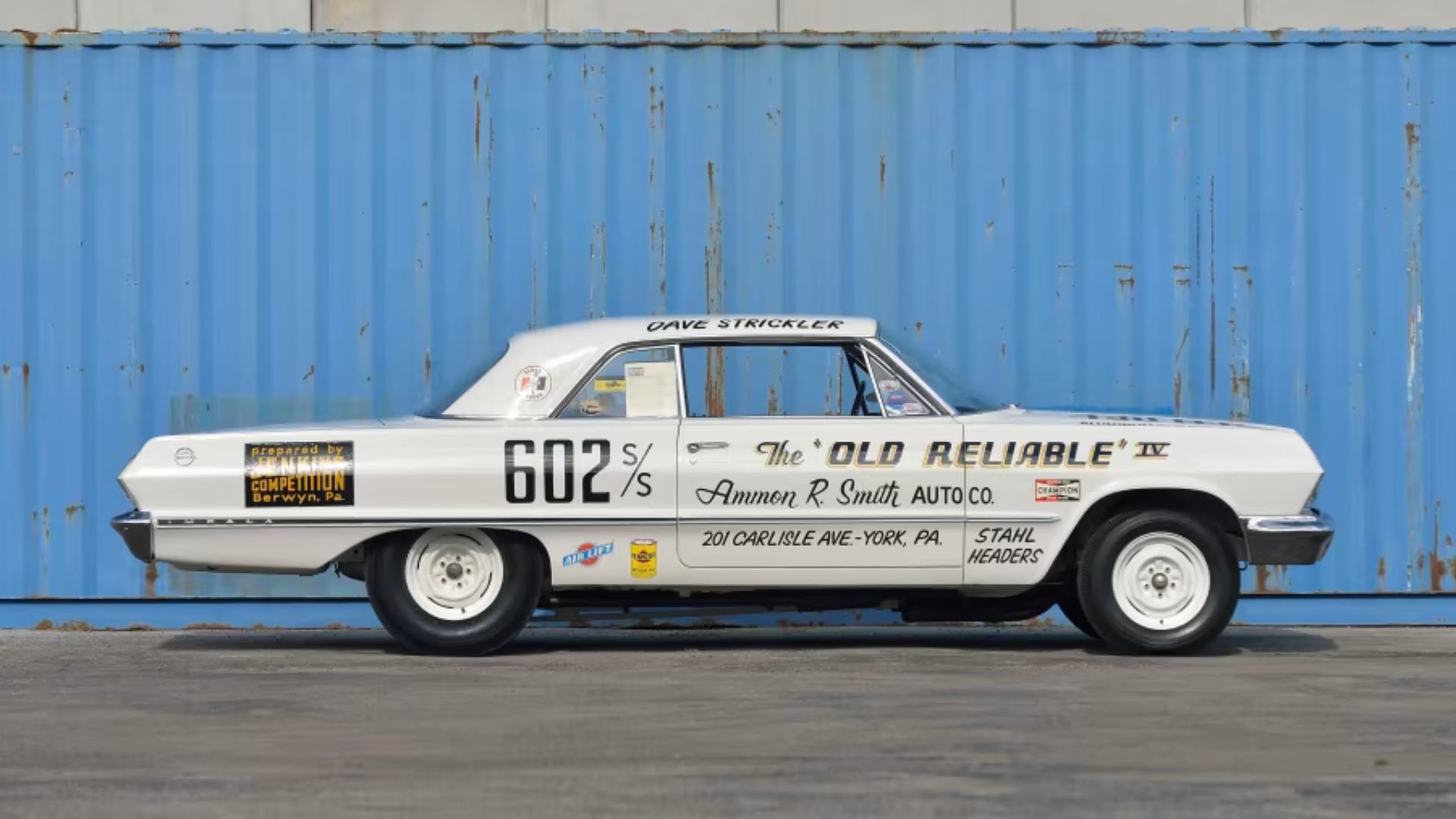

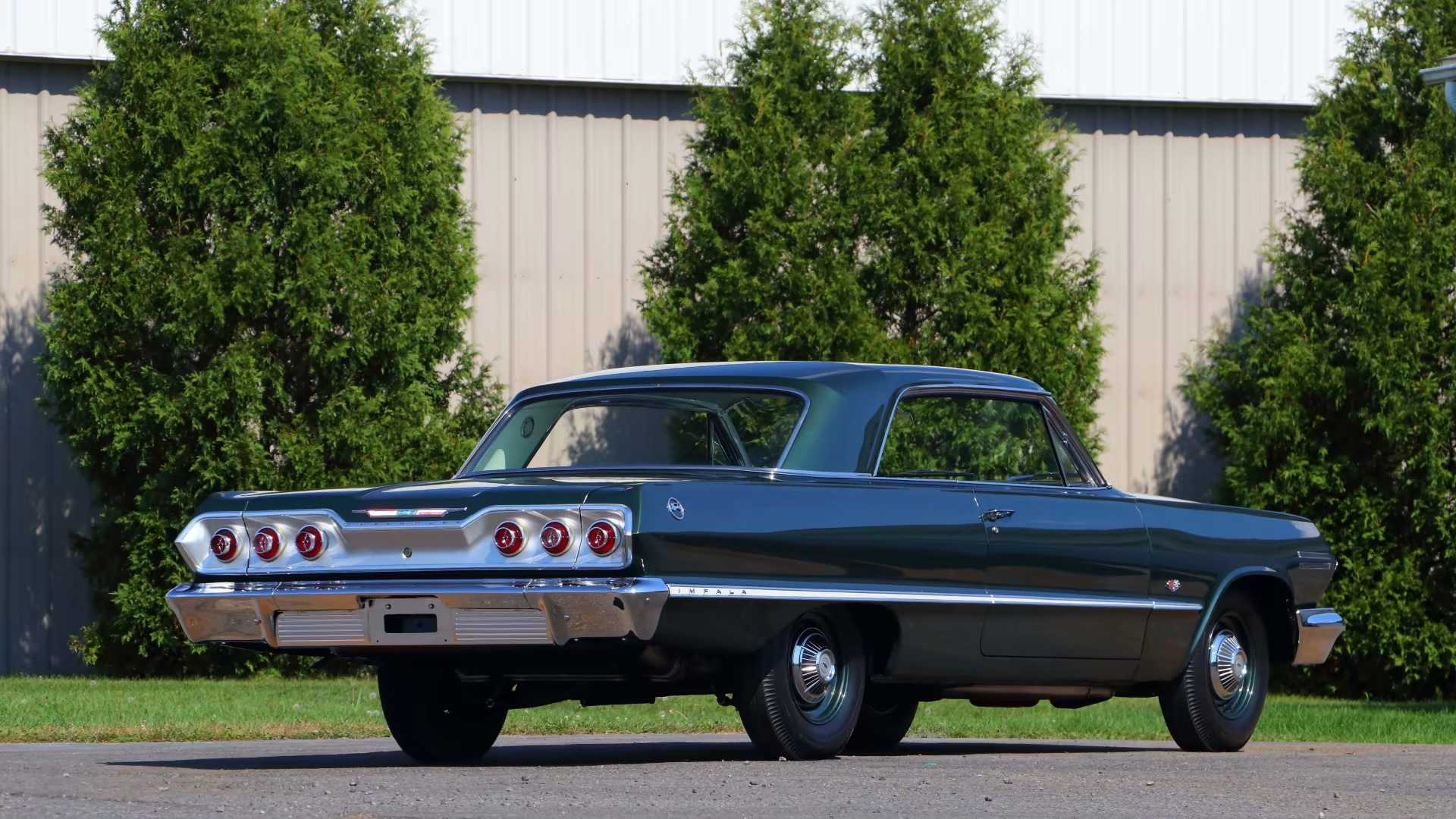

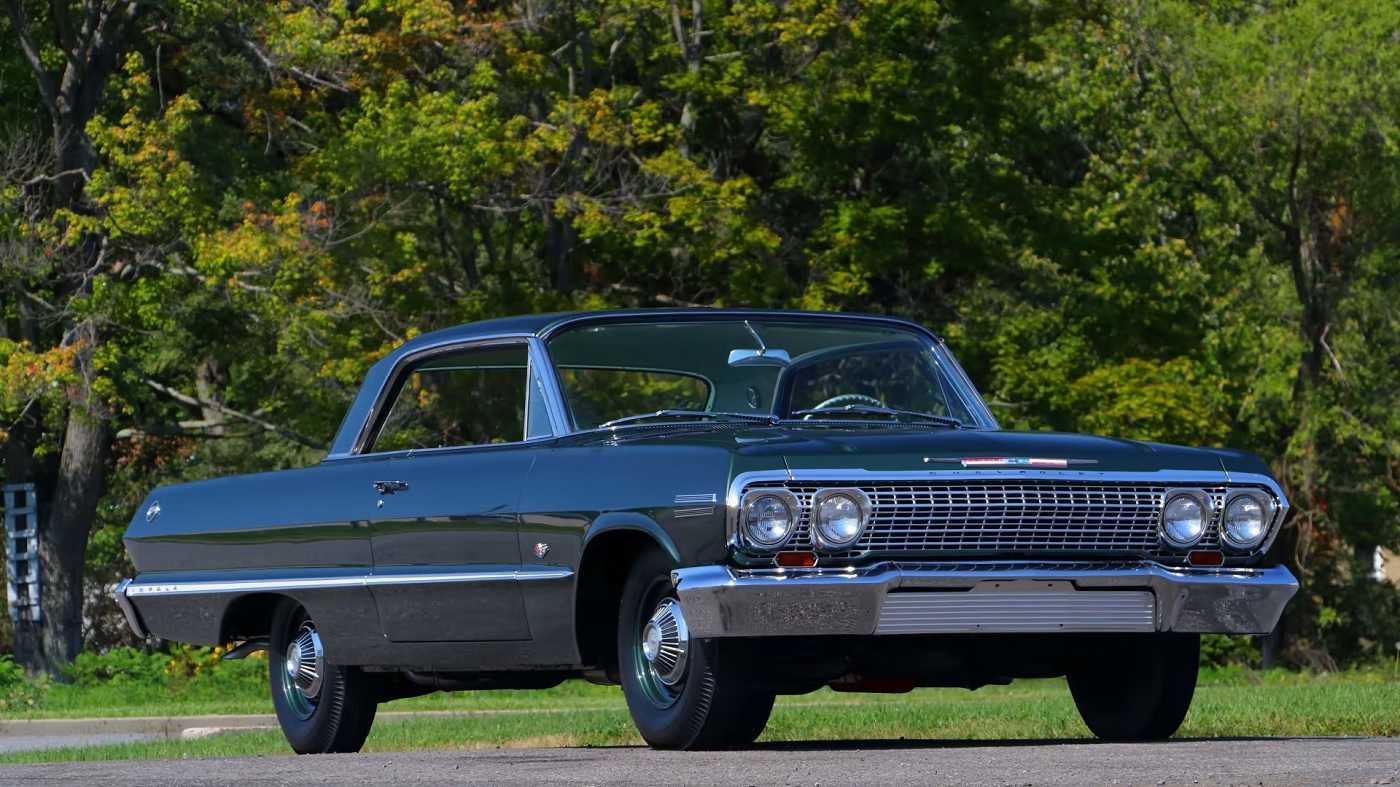

The most uncommon Chevrolet engine ever installed in a production vehicle traces its origins back to the racetrack. Determined to challenge rivals like Ford and Plymouth on the drag strip, Chevrolet developed the formidable Z11 V8 for competition use. Due to NHRA homologation requirements of that era, the automaker had to make 50 units legal for road use, which were built using the 1963 Impala as their foundation.

The engine itself evolved from Chevrolet's proven 409 V8 "W Engine." Engineers expanded the bore and fine-tuned the powerplant to achieve a 427-cubic-inch displacement, creating what became one of the most aggressive Impalas ever built. Despite their impressive performance capabilities, the Z11 427 V8 engines proved short-lived. Chevrolet chose to discontinue its high-performance engine initiative in late 1963 after GM banned factory-supported racing earlier that year, completing only 57 units before shutting down production.

This limited production run established the Z11 V8 as Chevrolet's rarest engine of all time. The combination of scarce availability and exceptional performance keeps these engines highly sought-after among collectors, as evidenced by a restored unit fetching $20,000 at a 2017 Mecum Auctions sale.

How A Chevy 409 Became The Rare Z11 V8

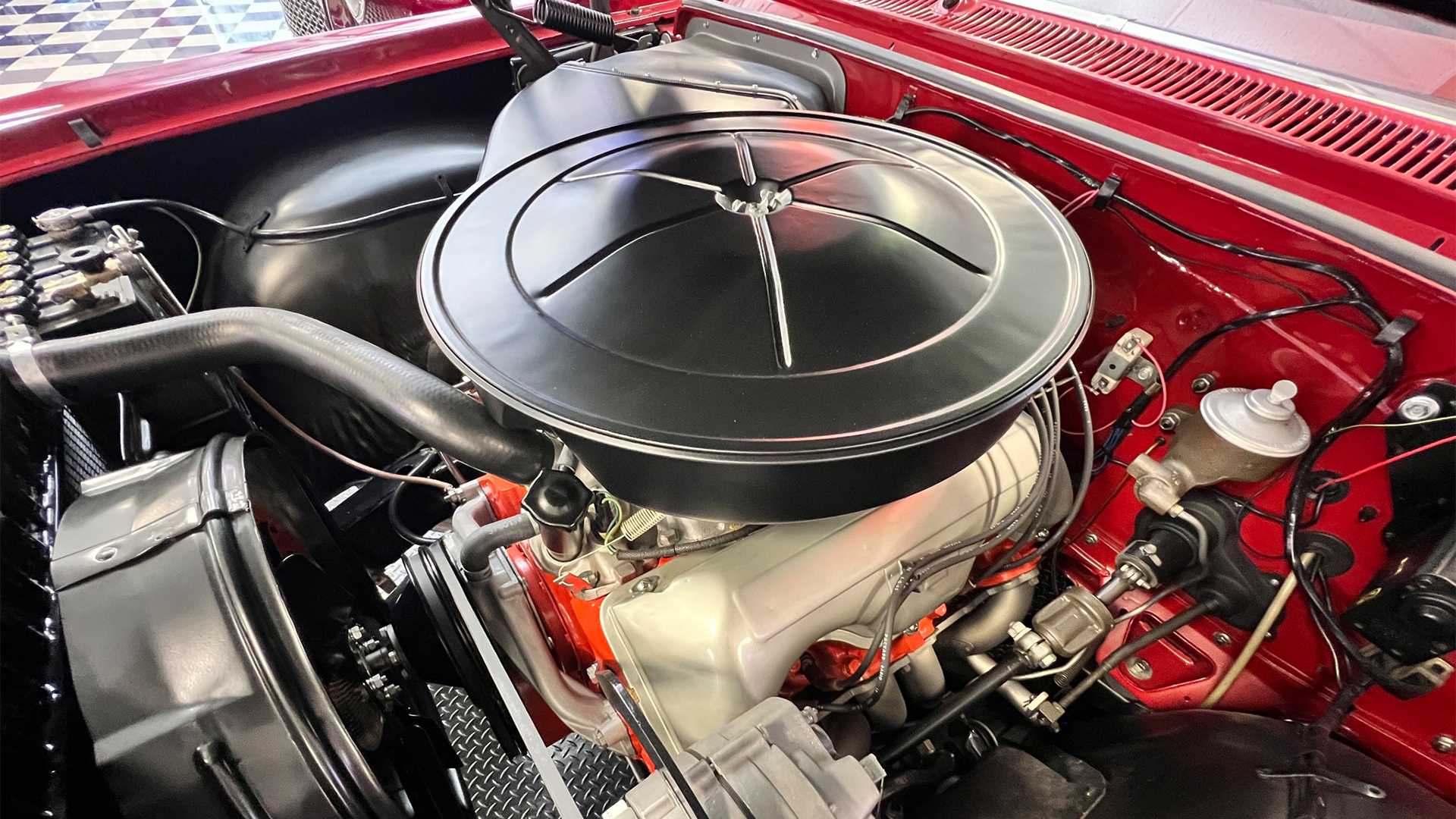

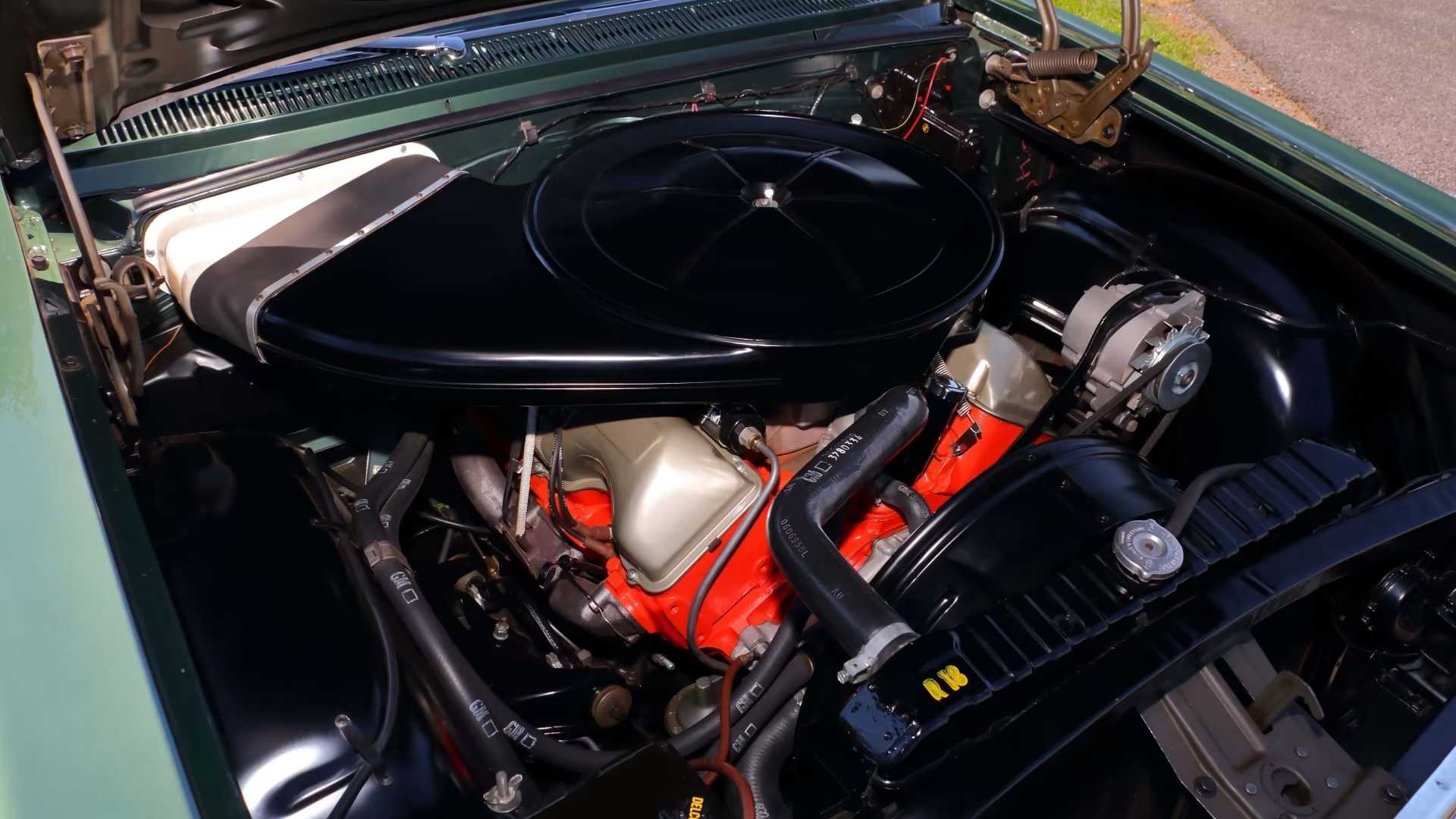

To create the Z11 V8, Chevy started by enlarging the donor engine from 409 cubic inches to 427. This was achieved with a longer 3.65-inch stroke, while the 409's 4.3-inch bore remained the same. The new Z11 also gained airflow through a set of new heads, as well as bigger exhaust valves.

The head castings were taller in the mighty Z11 big block V8 compared to the standard 409 unit, which allowed for a straighter path to the combustion chamber. And to keep weight down, the intake manifold and water pump for these special V8s were made from aluminum.

The Z11's dual carb system was afforded a bespoke air cleaner housing, which further enhanced airflow, while a new high-capacity oil pan was introduced to improve the upgraded engine's durability. According to Hemmings, even though Chevrolet rated the engine at around 430 hp, it could actually put out between 480 and 525 hp.

Unlike its same-sized 427 ci 'Mystery Motor' sibling, which was discontinued around the same time, the Z11 did make it into a few dozen production Impalas. But, the Z11 was geared towards drag racing versus the "secret motor", which was designed to compete in NASCAR.

Chevy's Original ZL1 Is Another Extremely Rare V8

Chevrolet ZL1 V8 Details

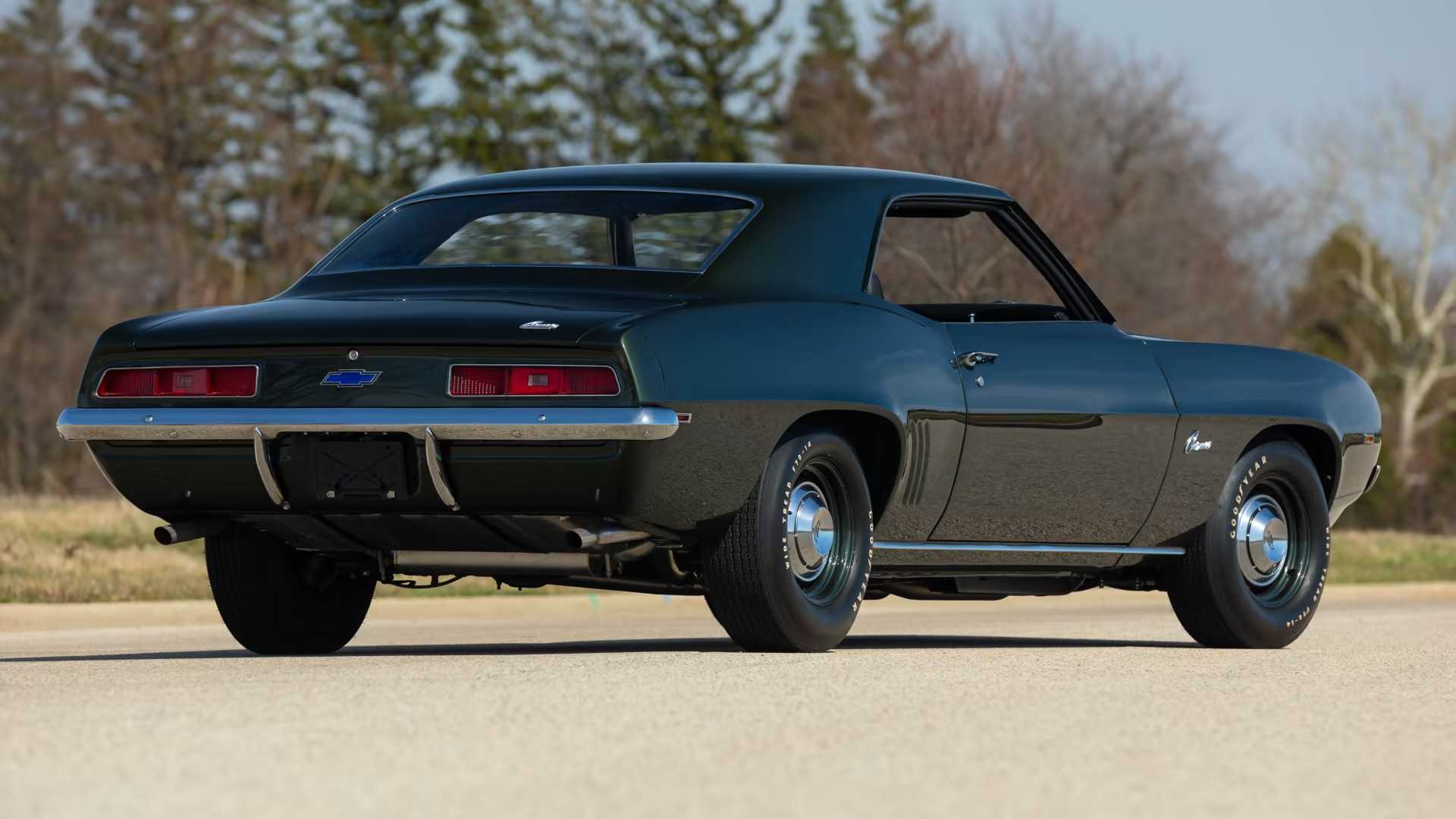

Chevrolet's creation of the 427-cubic-inch Z11 V8 wasn't the company's final foray into developing specialized engines for muscle car applications. During the late 1960s, Fred Gibb—a Chevrolet dealer with a passion for drag racing – set out to create a unique variant of the newly launched Camaro optimized for dominating quarter-mile competitions.

Gibb leveraged (Central Office Production Order) system, a program enabling dealers to commission custom-built vehicles, to bring his vision to life. Drawing inspiration from the remarkable performance of Chevrolet's aluminum big block engines in Can-Am racing, Gibb sought to harness that same technology for street applications.

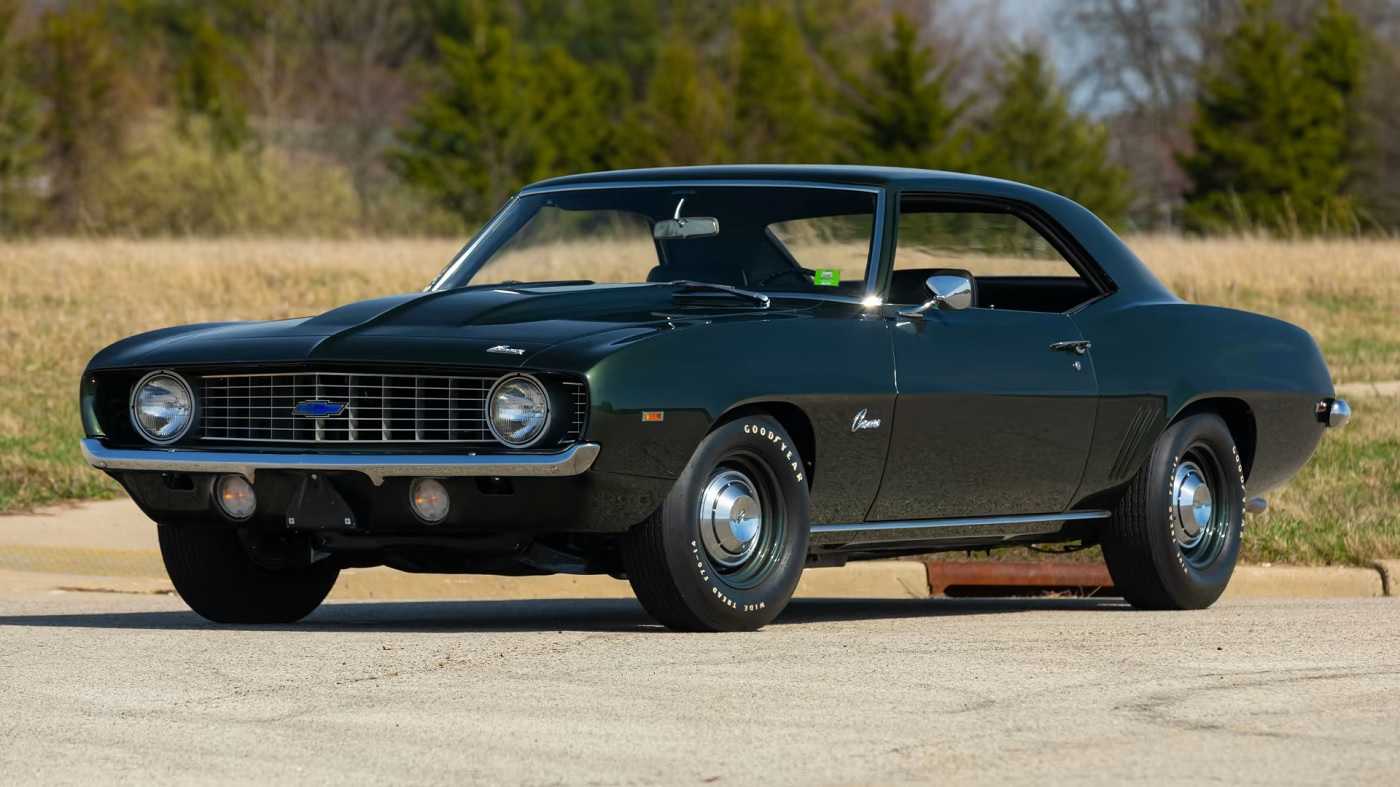

His order specified 50 Camaros equipped with Chevrolet's aluminum 427-cubic-inch V8 NASCAR engine. These vehicles would later become known as ZL1s, named after their distinctive powerplant. Word of Gibb's innovative project spread throughout the dealer network, prompting additional orders from other interested parties. Ultimately, production reached just 69 street-legal ZL1 engines.

Though slightly less exclusive than the Z11 engines that powered select Impalas years earlier, the ZL1 powerplants represent another exceptionally rare chapter in Chevrolet's V8 legacy.

The Aluminum ZL1 V8 Had An Impressive Power-To-Weight Ratio

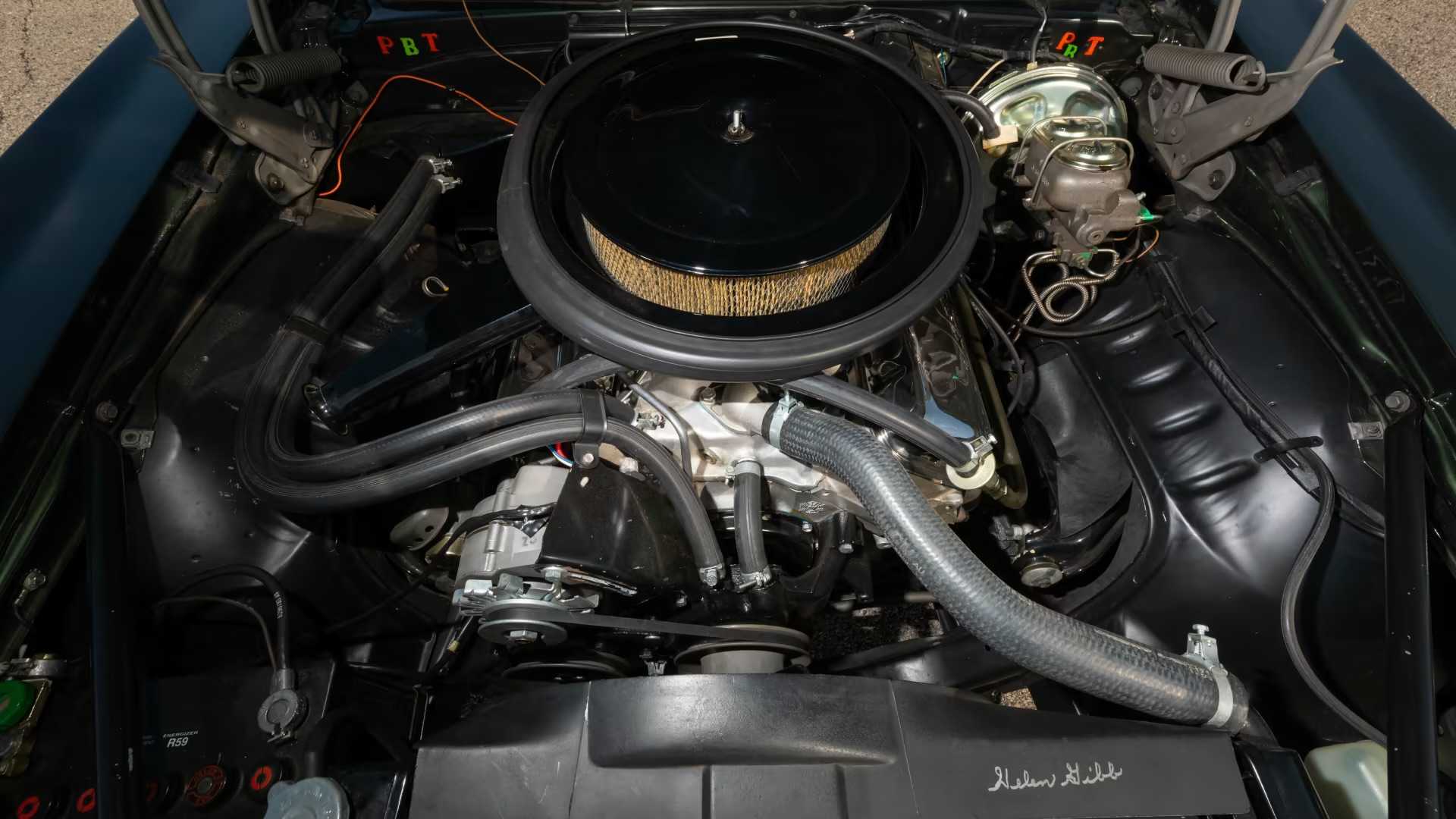

The main pull of the aluminum ZL1 V8 was how light it was compared to other road-going powerplants of the time, while also producing impressive power. Though the range-topping Camaro 396 of the time made 350 hp, the ZL1 was officially rated at 430 hp. This was severely understated, though, according to Chevrolet, as the ZL1 was suspected of making closer to 550 horsepower in reality.

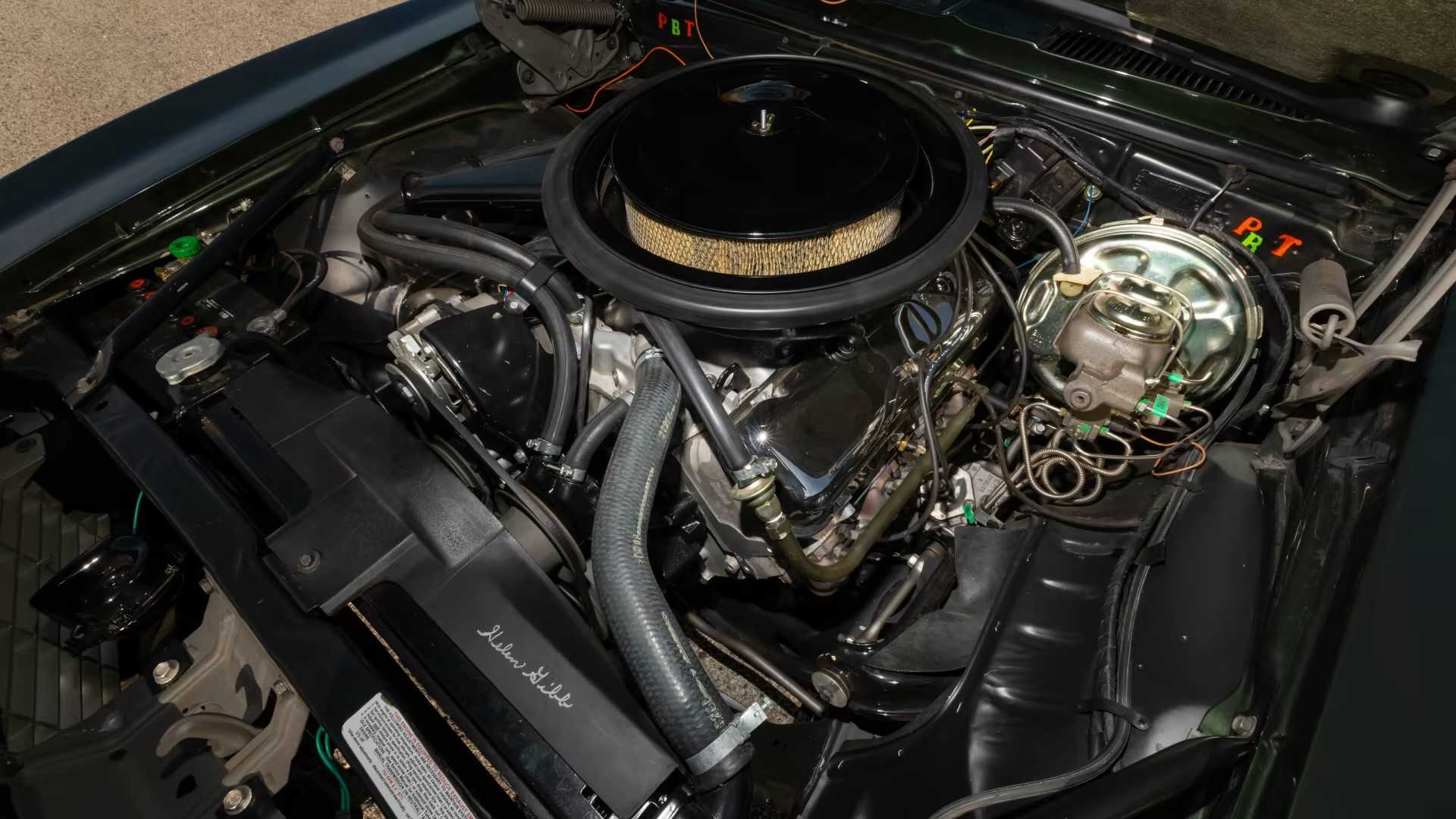

In addition to being far more powerful than the iron-block 396 ci engine, the ZL1 engine weighed around 100 pounds less due to its aluminum construction, including the block and special cylinder heads. The beastly engine also meant that the ultra-valuable 1969 Camaro ZL1 needed to be kitted out with an upgraded cooling system, which primarily consisted of a heavy-duty four-core radiator. There was also a ZL-2 hood, which helped to direct even more air into the engine.

These Camaro ZL1s also received a new rear axle and a four-speed manual transmission. Other upgrades included an enhanced K66 ignition system, which was introduced to ensure the powerplant ran smoothly during a quarter-mile run.

The Rare Z11 And ZL1 V8 Engines Command Serious Money Today

While the Camaro ZL1s offered immense performance, they also came with a $7,200 price tag, around $4,000 more than the standard Camaro V8s at the time. Gibb was so horrified at the sticker price that he sent 37 of the 50 cars he received back to Chevrolet so that they could be distributed to other dealers. Due to their extreme rarity, Camaros with the ZL1 V8 are worth serious money in 2024. According to Hagerty, a concours condition example can fetch as much as $850,000, while even one in Fair condition could be expected to go for around $500,000.

Both of these engines were amazing feats of engineering for their time, though the resulting prices of the cars that featured them ultimately ensured they would remain rare breeds. With just over 100 of the Z11 and ZL1 engines ever built, combined, any gearheads who stumble across these rarest of Chevy V8s should count themselves fortunate to be in the company of such greatness.

Sources: Hemmings, Mecum Auctions, Chevrolet, Hagerty
