MIT researchers have developed a framework that solves a major hurdle in eco-friendly construction: the inability of large-scale 3D printers to manufacture highly efficient, computer-optimized concrete structures.
This approach was validated by printing a 2.3-meter concrete bridge that carried over 2,000 pounds. It showed that improving printer hardware (like narrowing the printed line width) is the single biggest key to unlocking massive concrete savings and shrinking the industry’s carbon footprint.
“The bridge took about 30 minutes to make and was built from off-the-shelf mortar,” said Josephine Carstensen, senior author and the Gilbert W. Winslow (1937) Career Development Professor in Civil Engineering.
The two-minute solution
Existing methods for 3D-printed concrete often require days of manual post-processing to make a computer’s wild design printable. Typically, mathematically perfect designs were too intricate for thick-nozzled printers to build.
“We were finding a lot of cracks you can fall through when it comes to translating these super-optimal designs into manufacturable designs. Those cracks were like chasms,” said Hajin Kim-Tackowiak, a postdoc in MIT’s Department of Civil and Environmental Engineering (CEE).
MIT researchers developed a mathematical framework using advanced “mixed-integer optimization.” This software bakes the printer’s real-world fabrication limits directly into the design process. And generates fully buildable designs on a laptop in just “two minutes.” It embeds real-world hardware constraints, such as the nozzle turning radius and continuous-path requirements.
To pinpoint the exact limitations of large-scale concrete 3D printers, the MIT team collaborated with machine operators at Autodesk’s Technology Center in Boston.
These hands-on insights revealed three manufacturing constraints: required bead thickness, nozzle-turning sharpness, and the need to print in a single continuous line. Notably, the physical rules were integrated directly into their software, replacing older, inefficient methods.
When the team needed to slightly reduce the bridge’s size on the day of printing, they simply reran the optimization and had an updated design in 5 to 10 minutes.
“You go back five, 10 years ago, the solver we used, even three years ago, could not solve these problems. This field has been avoided, because everyone thinks that’s not an avenue we can go down. But with new algorithms and resources, it’s becoming a way we can start to frame problems,” said Zane Schemmer, co-first author and a PhD student in CEE.
Reducing material usage

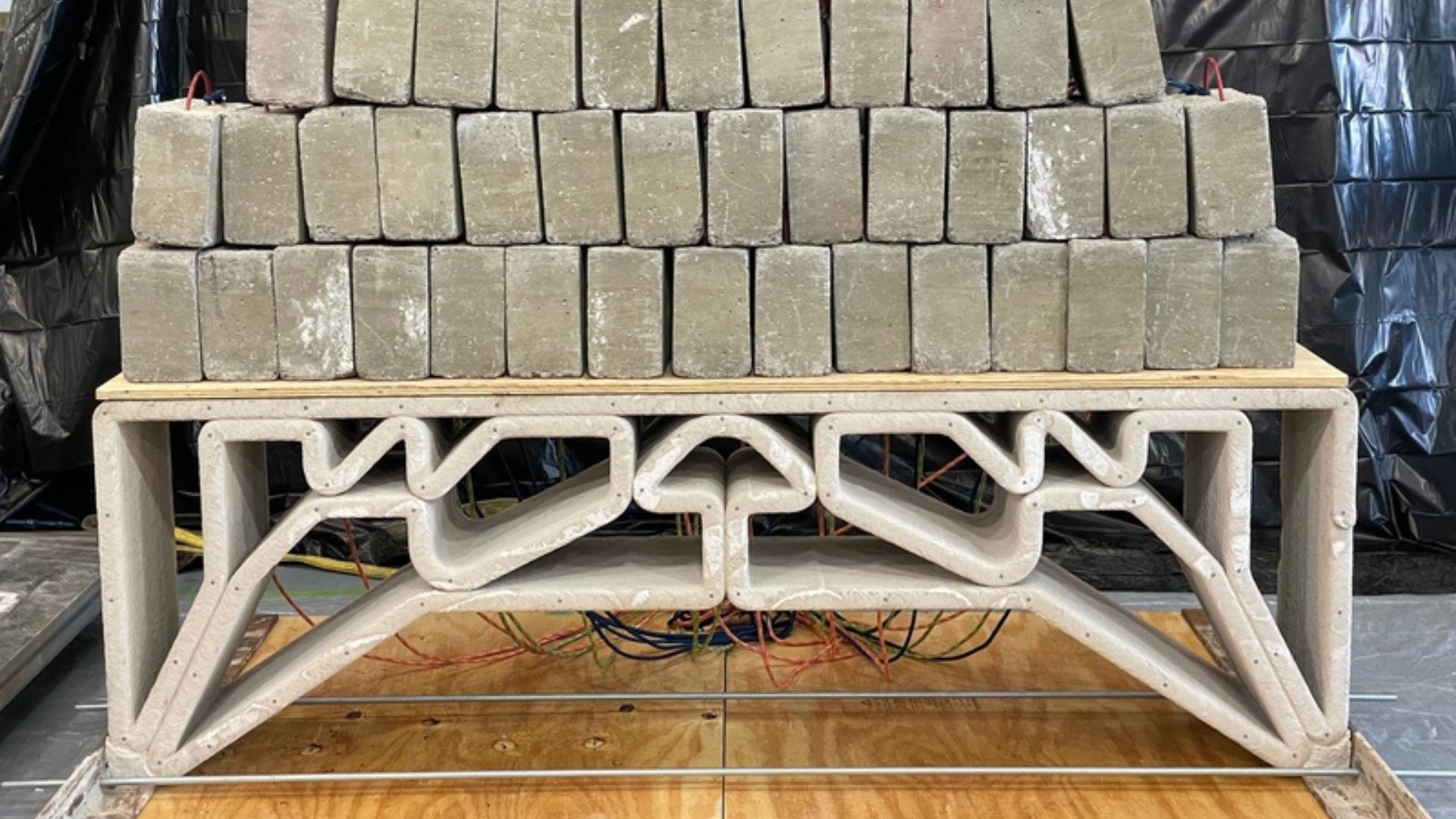

To validate their framework, researchers successfully printed and tested a 900-pound concrete bridge that supported over 2,000 pounds with almost no bending. It aligned perfectly with their simulations.
However, the test surprisingly revealed that the structure was heavily over-engineered. Up to a certain load, the structure’s form wasn’t dictated by the concrete but by the physical limitations of the printer.
This discovery provided a clear roadmap for the future of construction technology.
Particularly, the framework calculates the mathematically ideal design. Hence, it can be used to precisely measure exactly how much material efficiency is lost due to these hardware constraints.
The team found that reducing the printed bead width from 4 centimeters to 1 centimeter could slash material usage by up to 76 percent.
Since the structure depends on concrete’s high resistance to compressive forces, it doesn’t require wasteful molds. This makes it ideal for building disaster relief infrastructure quickly. But it remains vulnerable to tensile forces, as demonstrated when the test bridge broke after being lifted from a corner.
To address this limitation, the team’s next phase focuses on developing reinforced concrete, though integrating rebar into the 3D-printing process presents its own unique technical challenges.
